imc SPARTAN-R (16 Slots)


19" rack version housing (3HE/84TE) with 16 slots for up to 128 analog inputs
Measurements (WxHxD in mm):
426,7 x 133,35 x310
Without handles, feet
Weight: 8kg
Configuración

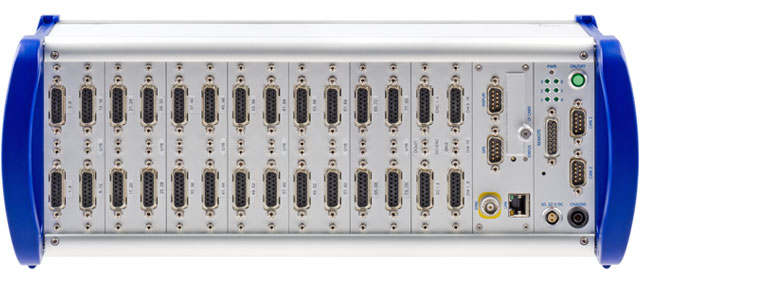

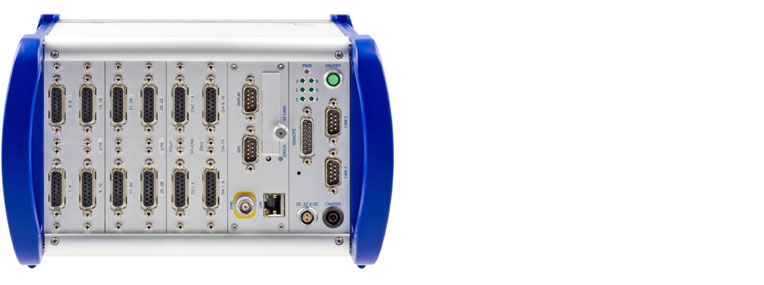

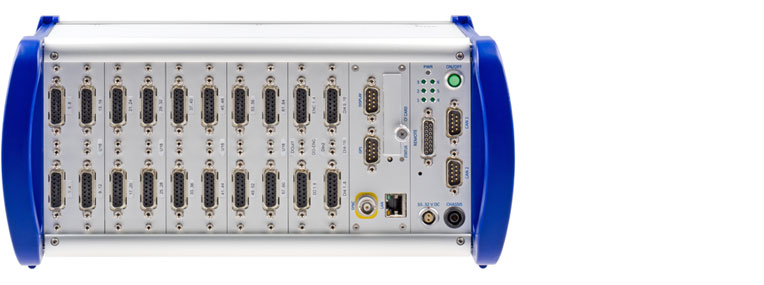

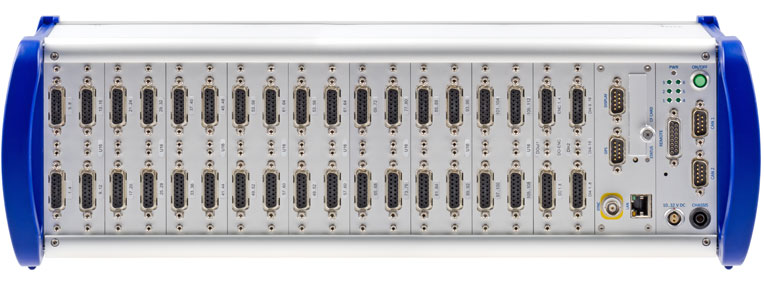

SPARTAN -2 / 4 / 6 / 8 | SPARTAN-R | |
---|---|---|
General | ||
Frecuencia de muestreoagregada | 400 kSps | |
Velocidad máxima de muestreopor canal | 500 Sps / chan | |
Tipo de chasis | portable | 19" rack |
Máximo número de canales configurable | 32/64/96/128 | 128 |
Ranuras para módulosconfigurables(1slot=4HP) | 4/8/12/16 | 16 |
Condiciones de funcionamiento | ||
Temp.alcance | ||
Rango de tempextendido. (incl. condensación) | ||
Rango de impacto y vibración | 30g pk (3 ms) | |
Conectividad | ||
Ethernet | 100 MBit | |
W-LAN (WiFi) | ||
Wireless GSM | ||
Puerto de conexión GPS | ||
Puerto de conexión de Display | ||
Interruptor principalpor control remoto | ||
Información de estadoprogramable(LEDs) | ||
Almacenamiento de Datos | ||
Ranura para tarjetas CF (Compact Flash) | ||
Almacenamientoen PC/red | ||
Disco duroIDE (interna) | ||
Capacidad Stand Alone | ||
Funcionalidad de triggercomplejoindependiente de PC | ||
Análisis de datosen tiempo real (imc Online FAMOS) | ||
Funcionamientosin PCautárquico,autoinicio(contador de tiempo,tiempo absoluto) | ||
Sincronizacióny reloj | ||
Maestro-Esclavoentre diferentes sistemas deimc | ||
Sincronización basada enredNTP | ||
Señal externa de GPS | ||
Señal externa de IRIG-B &DCF-77 | ||
Contador de impulsosyControl de Procesos (E /S Digital) | ||
Entradadigital de 16Bit, salida digital de8bits | ||
4contadores de pulsos(2modo decuadraturachan) | ||
Extensiones de bus de comunicación | ||
CAN-FD | ||
LIN | ||
J1587 | ||
ARINC | ||
FlexRay | ||
XCPoE | ||
EtherCAT | ||
MVB-Bus Typ EMD | ||
MVB-Bus Typ ESD | ||
IPTCom | ||
Fuente de alimentación | ||
Entrada DC10Va 32V | ||
AdaptadorAC /DC(110 a230 VCA) | ||
Integridad de los datosen caso defalla de energía | ||
UPS | ||
Entrada de alimentación aislada | ||
Software | ||
imc REMOTE servidorweb |
