imc WEBDEVICES – remote testing for communities
Servicios de Internet y nube de instrumentos en la medición
![Remote Testing mit imc WEBDEVICES Remote Testing mit imc WEBDEVICES](/fileadmin/Public/News_Events/Press/2013/PM_imc_2013-02-21_imc_Remote_Testing_web.jpg)
imc WEBDEVICES permite a los estados y los datos medidos observar, registrar y realizar las pruebas a través de largas distancias de los sistemas técnicos - tales como vehículos, maquinaria, equipo, edificios - con mando a distancia, no tripulado y totalmente automático
Product Catalog
Redes de instrumentos y personal de prueba de medición
De manera similar a una red social en la que la gente hace amigos; la red y el intercambio de información de imc WEBDEVICES interconecta muchos objetos de prueba con cualquier número de ingenieros de pruebas, socios del proyecto y administradores a través de un portal web. Esto se traduce en beneficios específicos de productividad, ya que todos los participantes tienen en cualquier momento y desde cualquier lugar un acceso basado en los derechos a los datos de medición actuales, y la información de estado.
Remote monitoring and remote testing with imc WEBDEVICES in detail
Dynamic measurement data and status information of the test object is acquired over multiple channels (Remote Monitoring) and already before the transmission, the data are subjected to real-time analysis (Remote Testing). In automatic test mode, the system also monitors thresholds and sends alerts if necessary. Ongoing plausibility checking of the data collected guarantees high data security and data integrity. A broken cable, a defective measurement instrument or a defective sensor are automatically detected and reported. This is especially important in long-term monitoring, such as on construction machinery in real operations.
After the transfer of information from the measurement device to the cloud, measurement data, measurement results, status information, etc. are published in imc WEBDEVICES on a bulletin board along with warnings and alarms that are issued by SMS or email. A user rights manager defines the degree of information sharing and accessibility. In this way, test object information can be limited on an individual basis, thus allowing each user to access only the information they require.
Easy to operate, easy to expand

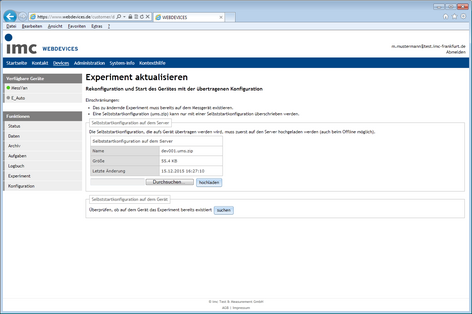

Through its intuitive, web-based interface, imc WEBDEVICES can be operated in any browser and also allows non-expert users to get started quickly. Customer-specific requirements can be complemented by the integrated expansion interface at any time in the form of an app.
Alle notwendigen Komponenten bietet imc als Komplettpaket inklusive Einrichtung und Schulung. Fordern Sie ihr persönliches Angebot an.
Testing and remote monitoring requires the following components:
- imc measurement device
- imc WEBDEVICES (cloud service)
- Commercial telecommunication technology (UMTS, EDGE)
- Qualified services
Areas of operation
Thanks to flexible architecture, it is possible to meet the diverse requirements of mobile or stationary testing and provide an application-specific solution.
- General remote testing and monitoring tasks
- Remote-controlled, long-term measurements of physical quantities
- Condition monitoring of vehicles, machinery, plants, structures
- Centralized data storage and organization
Anwendung und Vorteile
- Weltweite Flottenversuche überwachen
- Condition Monitoring von entfernten Maschinen, Anlagen oder Bauwerken
- Browserbasierter Zugriff aus Messdaten und Statusinformationen - mit jedem Laptop, Smartphone oder Tablet

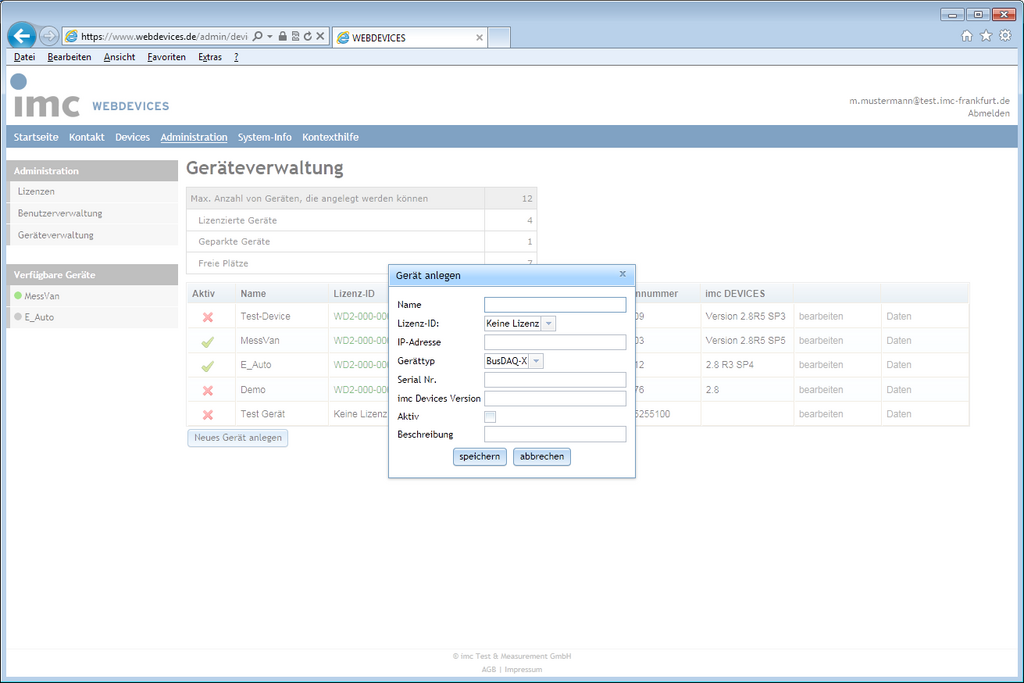

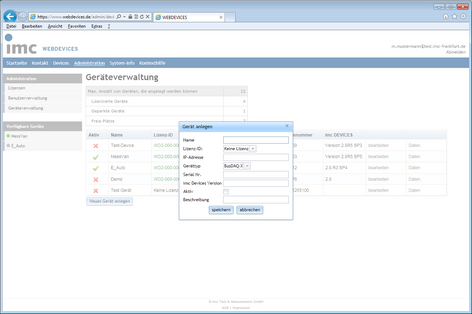

- Internetgestützte Verwaltung und Konfiguration von Messgeräten
- Automatische Warn- und Alarmmeldungen per E-Mail oder SMS
Grundfunktionen

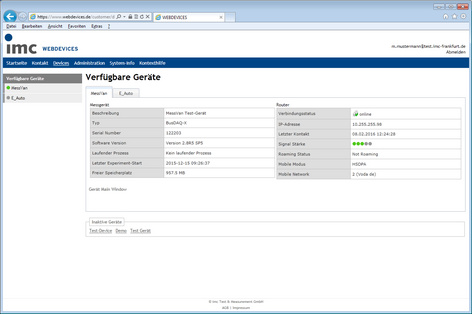

- Verwalten von 1 – n Messgeräten

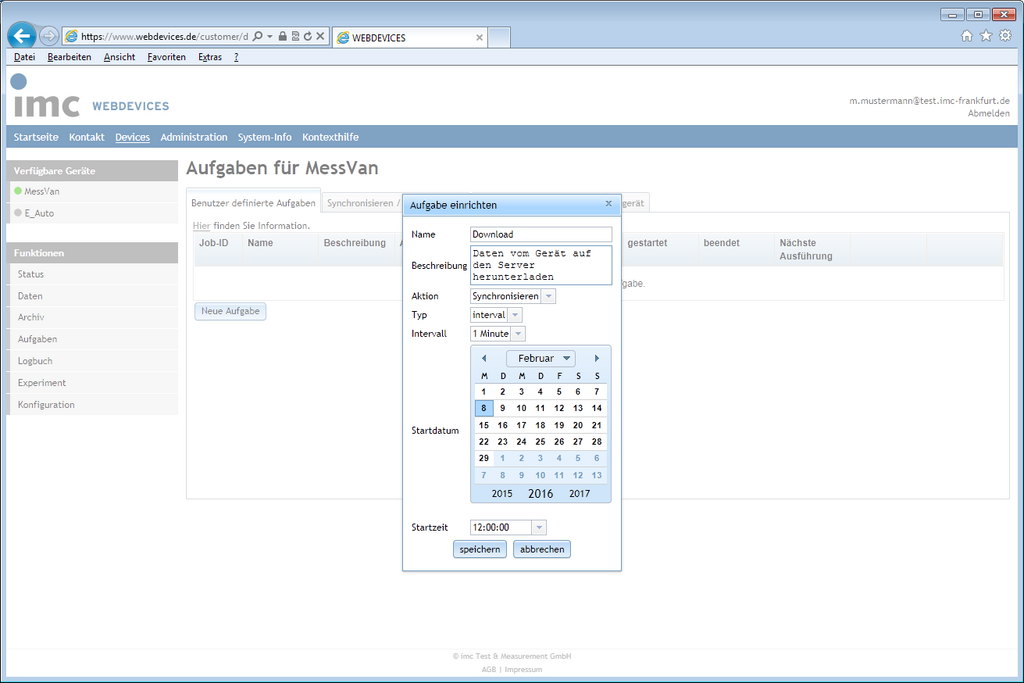

- Starten und stoppen von Messungen

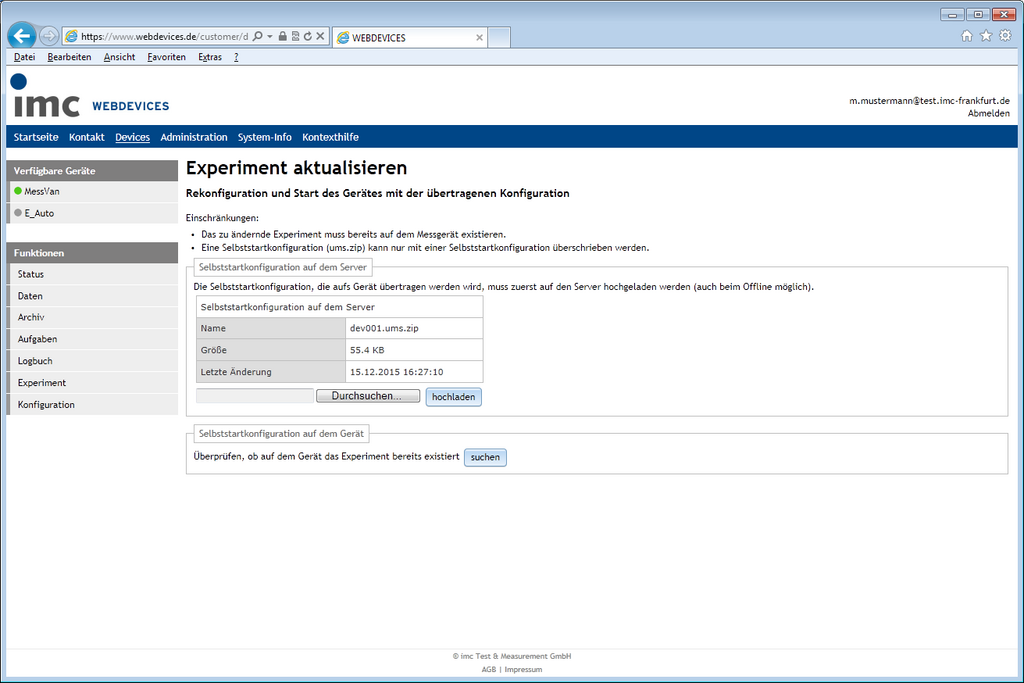

- Ändern von Messgerätekonfigurationen

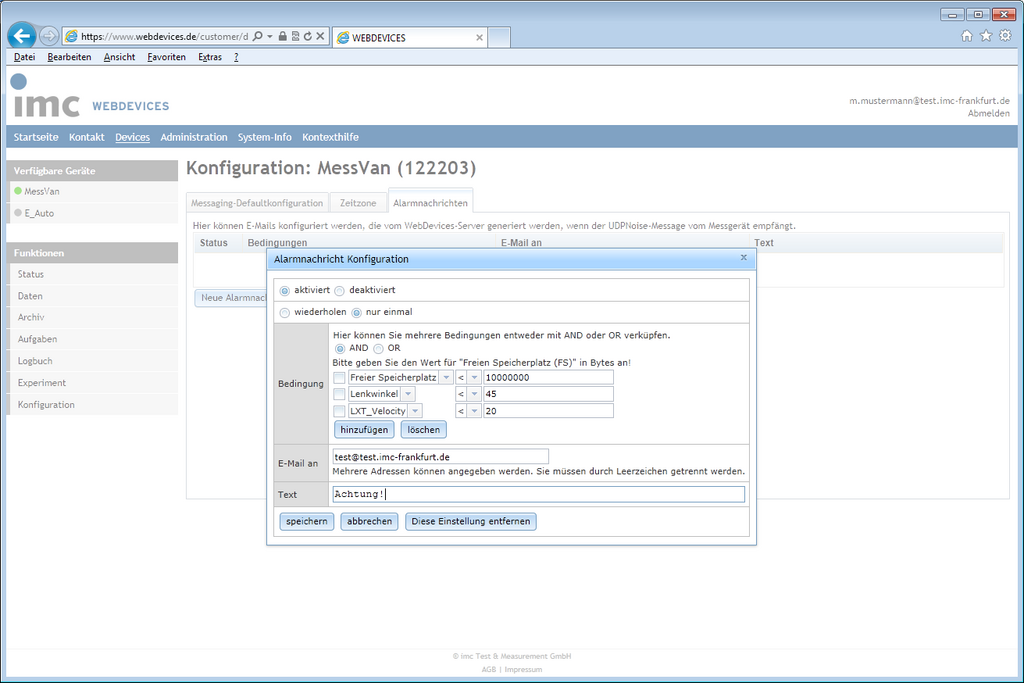

- Definition von Warn- und Alarmklassen
- Benachrichtigungsfunktion via E-Mail/SMS

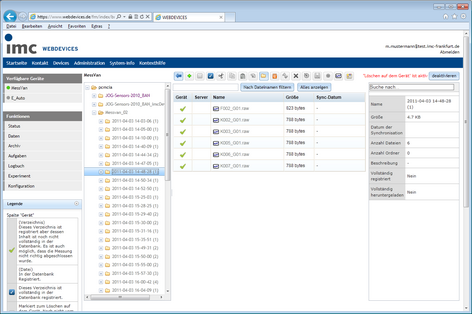

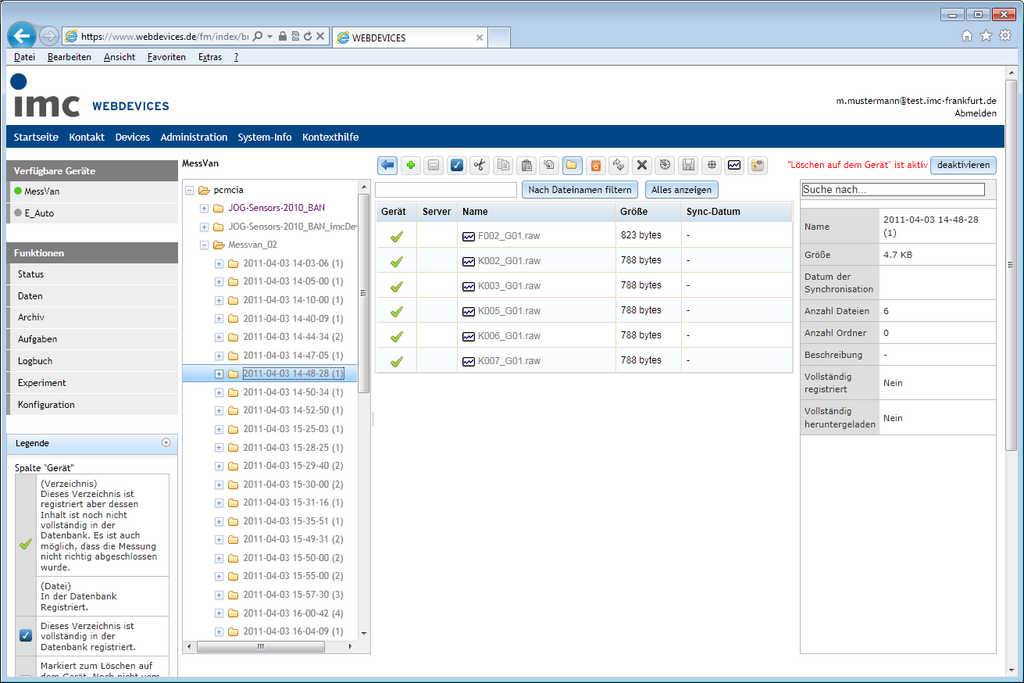

- Automatischer Datenupload von angebundenen Messgeräten
- Wetlweiter Messdatenzugriff über Internetbrowser

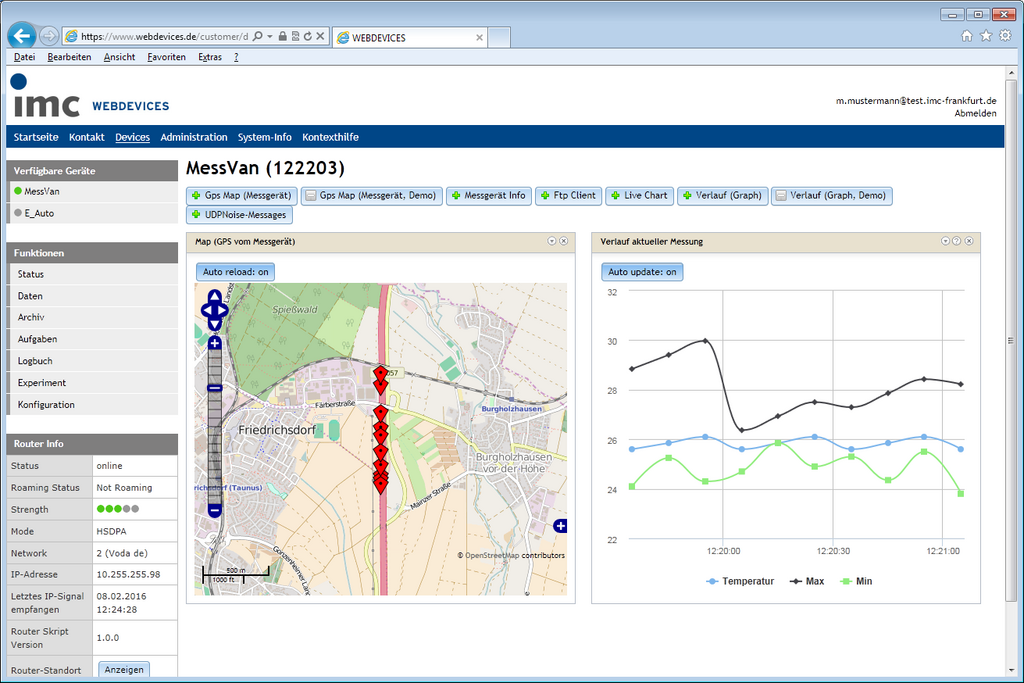

- Messdatenvisualisierung
- GPS-Ortsdatenübermittlung z.B. von Fahrzeugen oder mobilen Maschinen
Anforderungen an Messgeräte
- Direkt unterstützt werden alle imc Messsystem und Datenlogger
- Softwareschnittstelle zur Integration von Fremdgeräten
- Autarkes Messgerät mit internem Festspeicher
- Selbstartfähig mit USV
- Ethernetschnittstelle oder integriertes UMTS-Modem oder WLAN
- Anschluss für GPS Mouse empfohlen
