Módulos de medición para la medición de temperatura altamente aislada de hasta 800 V

El módulo de medición imc CANSAS HCI8 permite la medición segura y precisa de las temperaturas y los voltajes, bajo los niveles de modo común de alta tensión de hasta 800 V. Los módulos corresponden a la norma de seguridad dispositivo EN 61010 y tienen un grado de aislamiento: 800 V CAT I, 300 V CAT II

Typical applications:

  • Temperature measurement on high-voltage components in electric and hybrid vehicles, e.g., batteries, fuel cells and supply circuits
  • Environments in which full personal safety must be guaranteed even in the event of a fault
  • Can be used for test benches as well as for mobile driving tests
  • Both in decentralized distributed and central measurement networks

HV-Moduls for Thermocouples

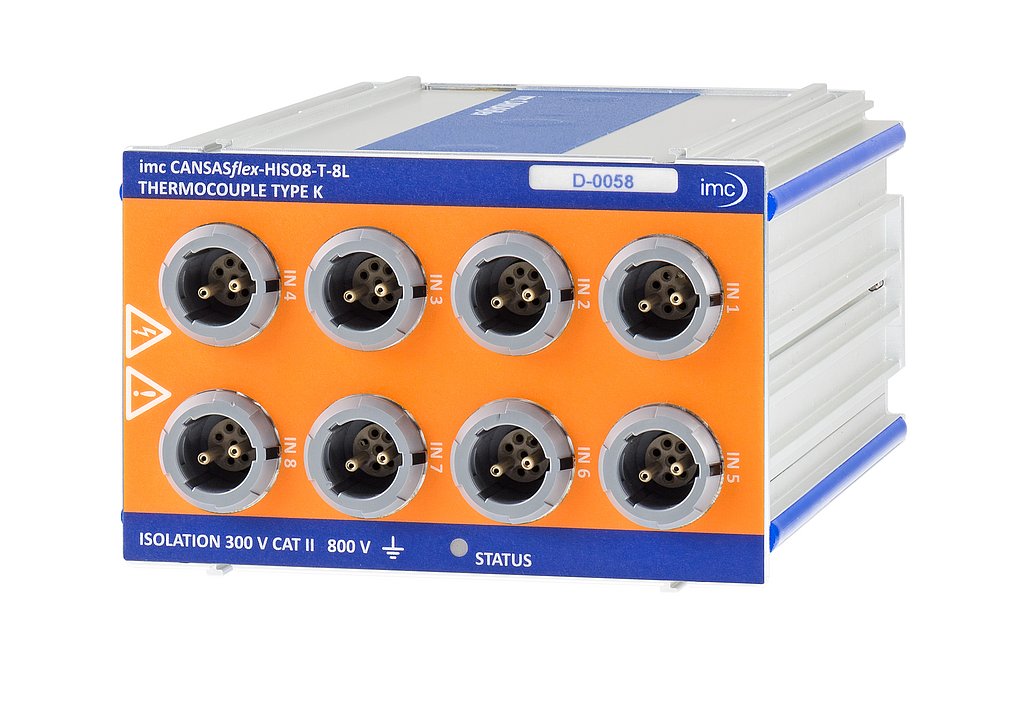

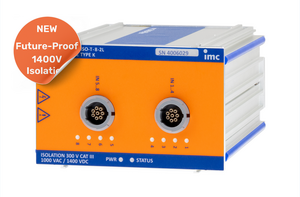

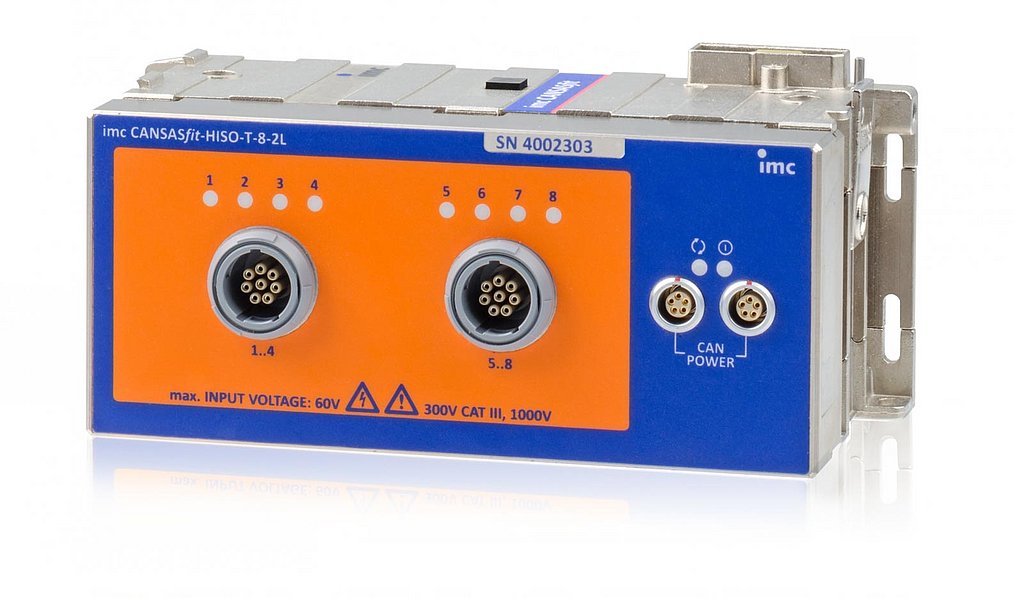

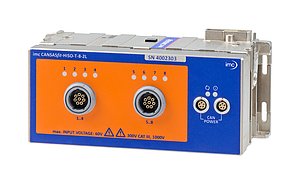

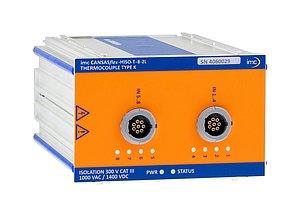

imc CANSASflex-HISO8-T

High voltage isolated CAN modules for the measurement of thermocouples

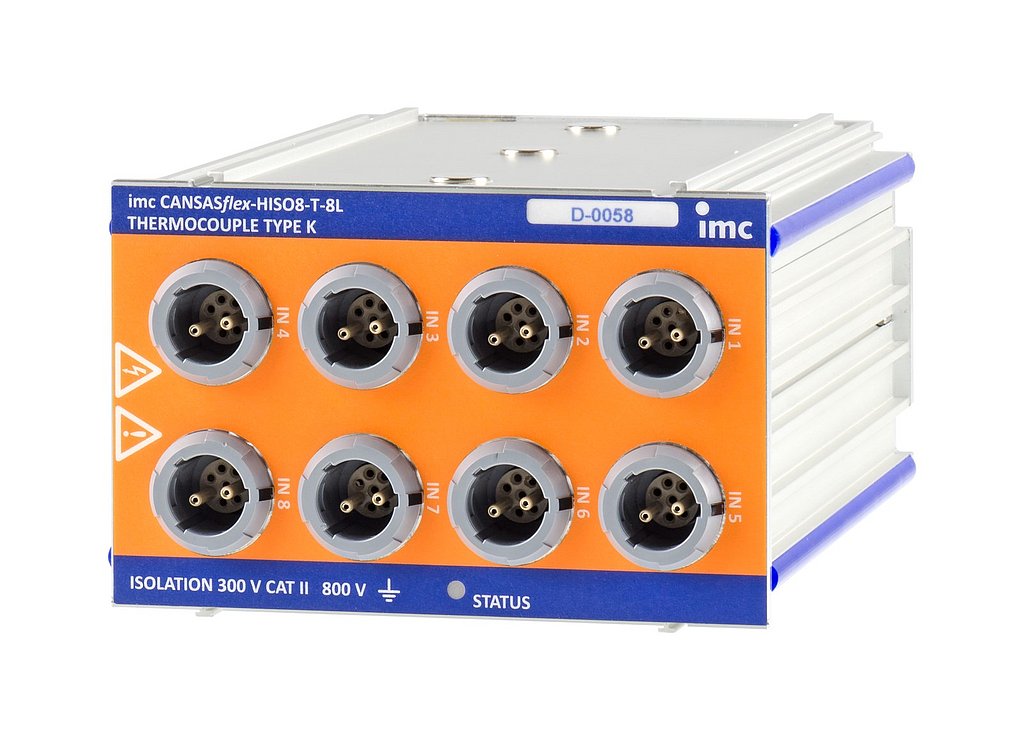

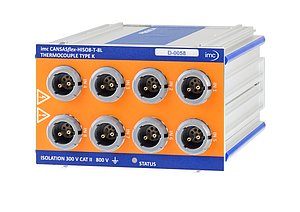

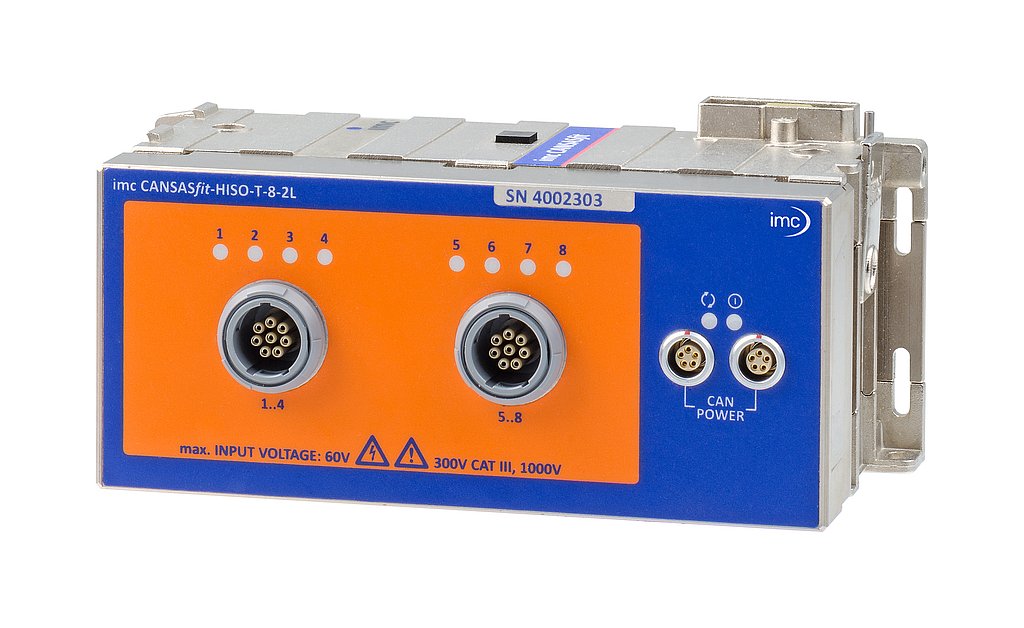

The measurement module imc CANSASflex-HISO8-T allows safe and precise measurement with 8 thermocouples (type K) which are mounted on high-voltage components with common mode voltage levels of up to 800 V. It is particularly suited for applications in the field of E-Mobility.

Highlights

  • Individually isolated measurement of temperatures (type K thermocouples) at a high common mode voltage level
  • Isolation: 800 V, 300 V CAT II (according to safety standard EN 61010)
  • Connector types: High-voltage-proof special connectors (LEMO):
    • 2x TE common plug (LEMO.2P 8-pin) or
    • 8x TE single plug (LEMO.2P 2-pin) or
  • Channel individual internal cold junction compensation

Typical applications

  • Temperature measurement on high-voltage components of hybrid and electric vehicles, such as batteries, fuel cells and supply systems.
  • Environments where personnel safety has to be ensured

HV-Modules for the measurement of PT100/1000 and low voltages

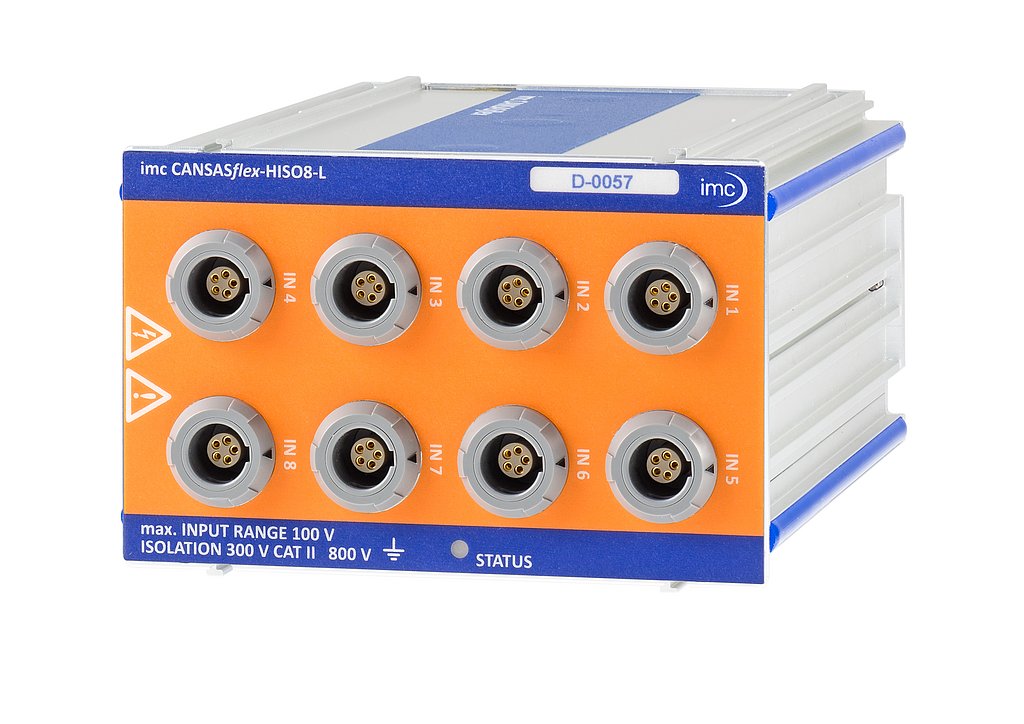

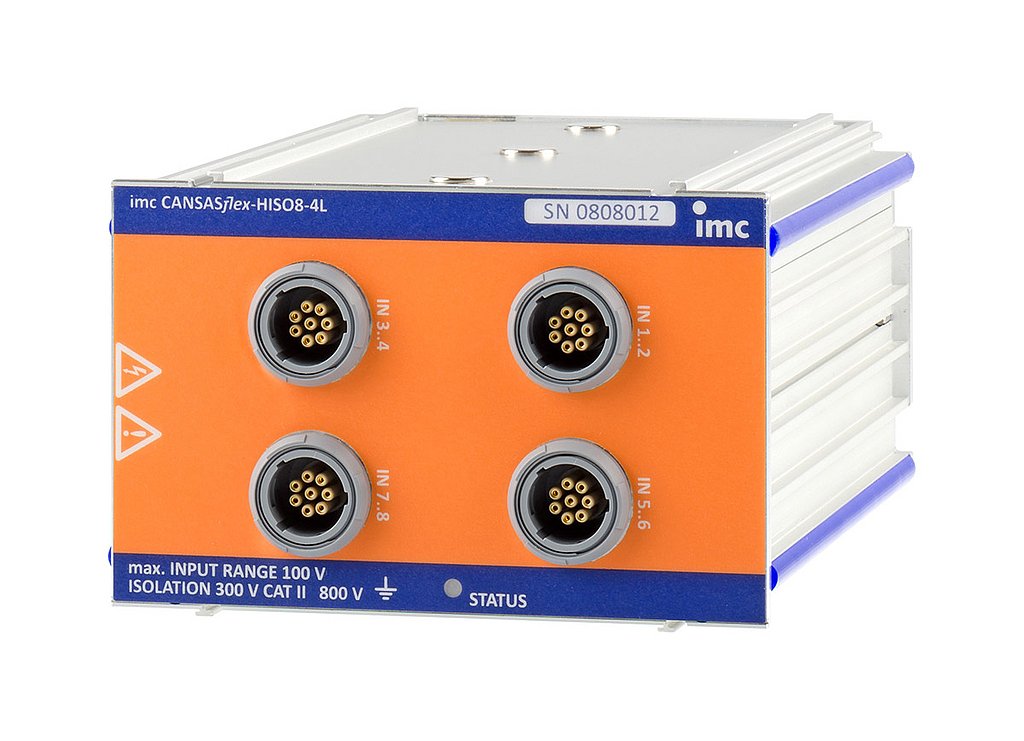

imc CANSASflex-HISO8-L

High voltage isolated CAN modules for the measurement of PT100/1000 and low voltages

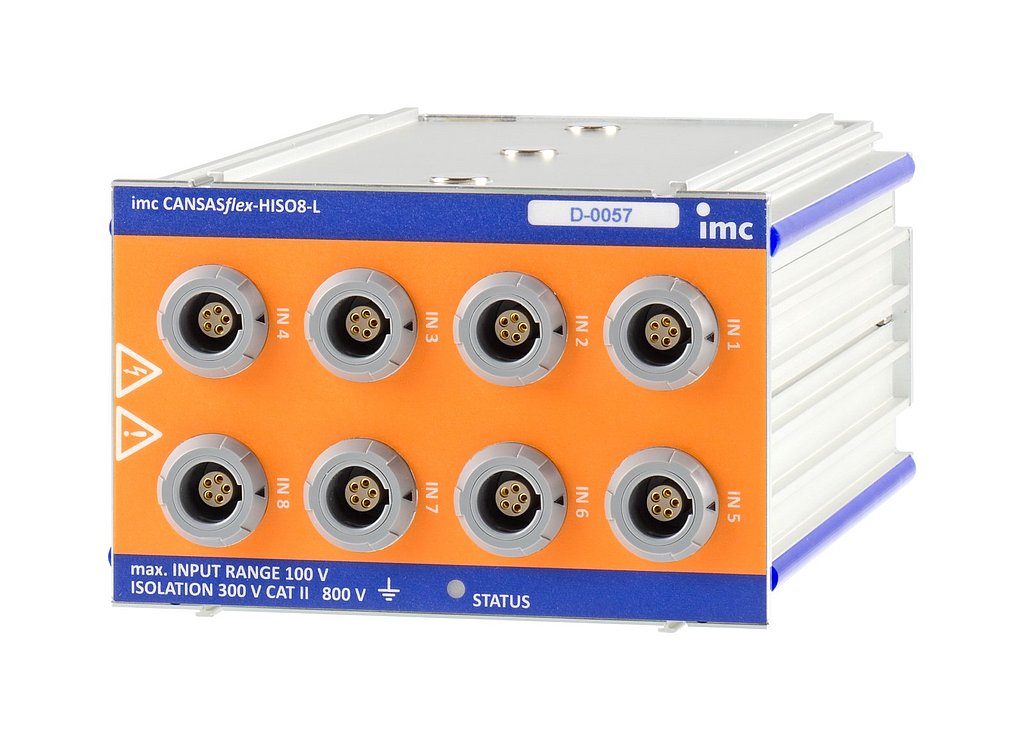

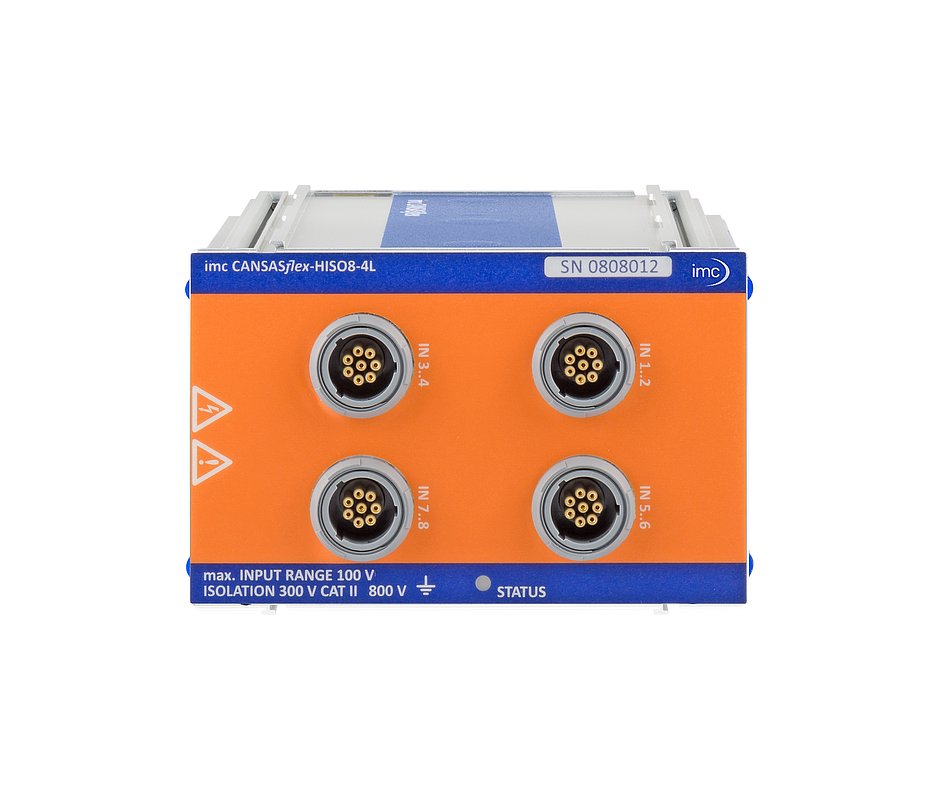

The CAN-Bus measurement module imc CANSASflex-HISO8-L allows safe and precise measurement of PT100/1000, respectively low voltages, as well as differential voltages up to 100V on high-voltage components with common mode voltage levels of up to 800 V. It is particularly suited for applications in the field of E-Mobility.

Highlights

  • 8 chanels for measuring PT100/1000 or low voltages up to 100V
  • Isolation: 800 V, 300 V CAT II (according to safety standard EN 61010)
  • Connector types: High-voltage-proof special connectors (LEMO):
    • 4x PTx/voltage common plug (LEMO.2P 8-pin)
    • 8x PTx/voltage single plug (LEMO.1P 5-pin)

Typical applications

  • Temperature measurement on high-voltage components of hybrid and electric vehicles, such as batteries, fuel cells and supply systems.
  • Environments where personnel safety has to be ensured

Connection box for high voltage (HV) modules

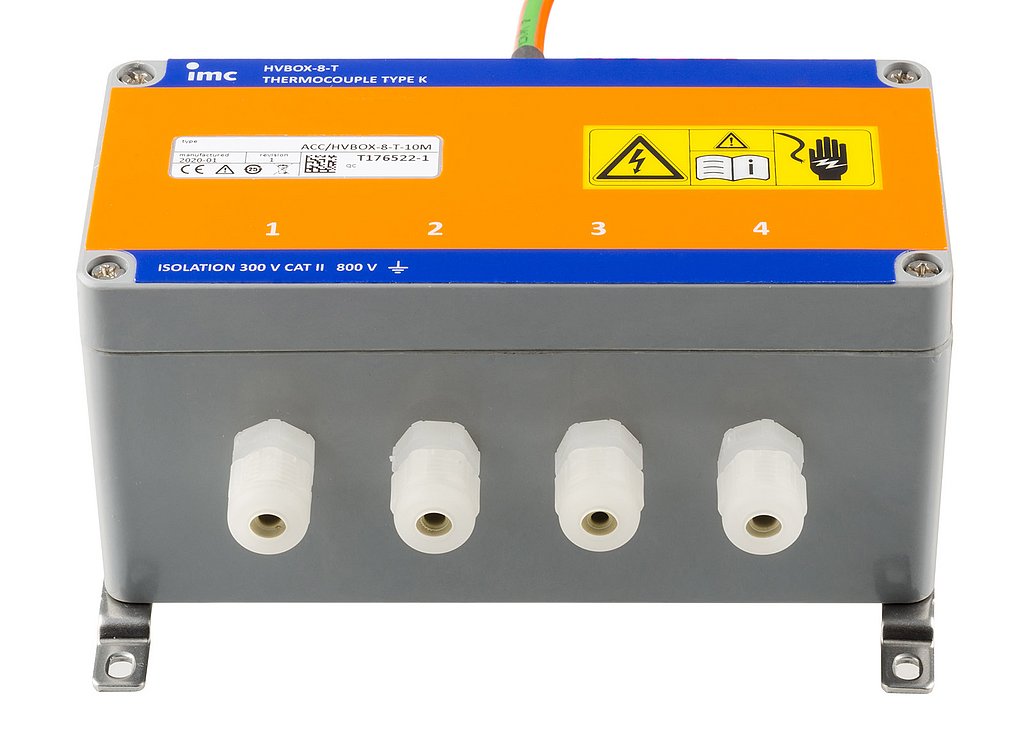

The HV connection box (HVBOX) serves as a flexible safety interface between the measuring point and the DAQ system. This allows sensors and test object instrumentation that were not originally designed to be HV-safe to be connected to the HVBOX and thus transformation to a fully HV-specified environment.

Features:

  • isolated screw terminals in polymer box
  • sensor cable entry via cable gland (PG)
  • serves as flexible and safe cabling interface to any arbitrary user cable
  • with 10 m special HV cable via LEMO.2P (Redel)
  • clear division between fully specified HV rated measurement module and connectors on one side – and custom and application specific cables and sensors on the other side
